Solar Arch

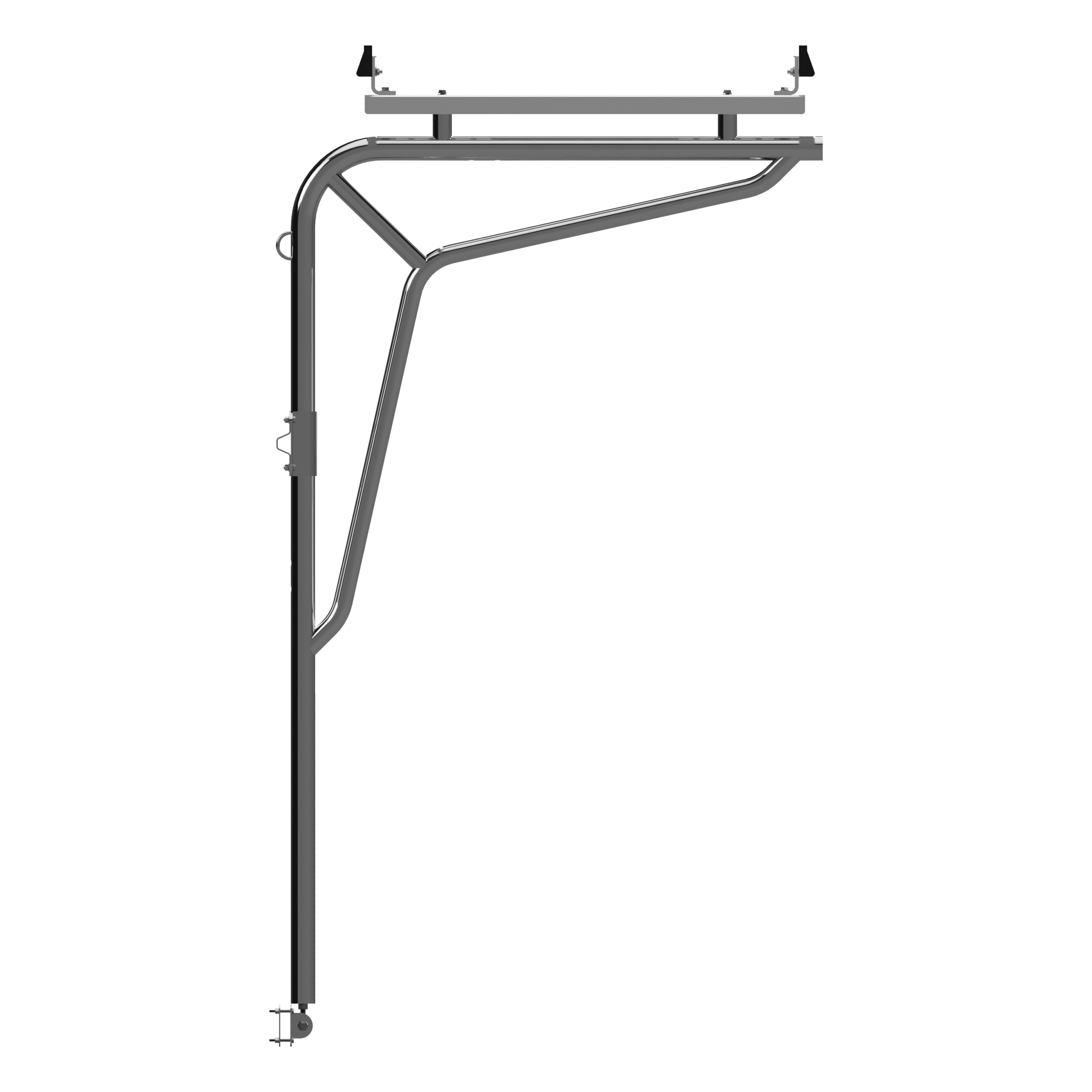

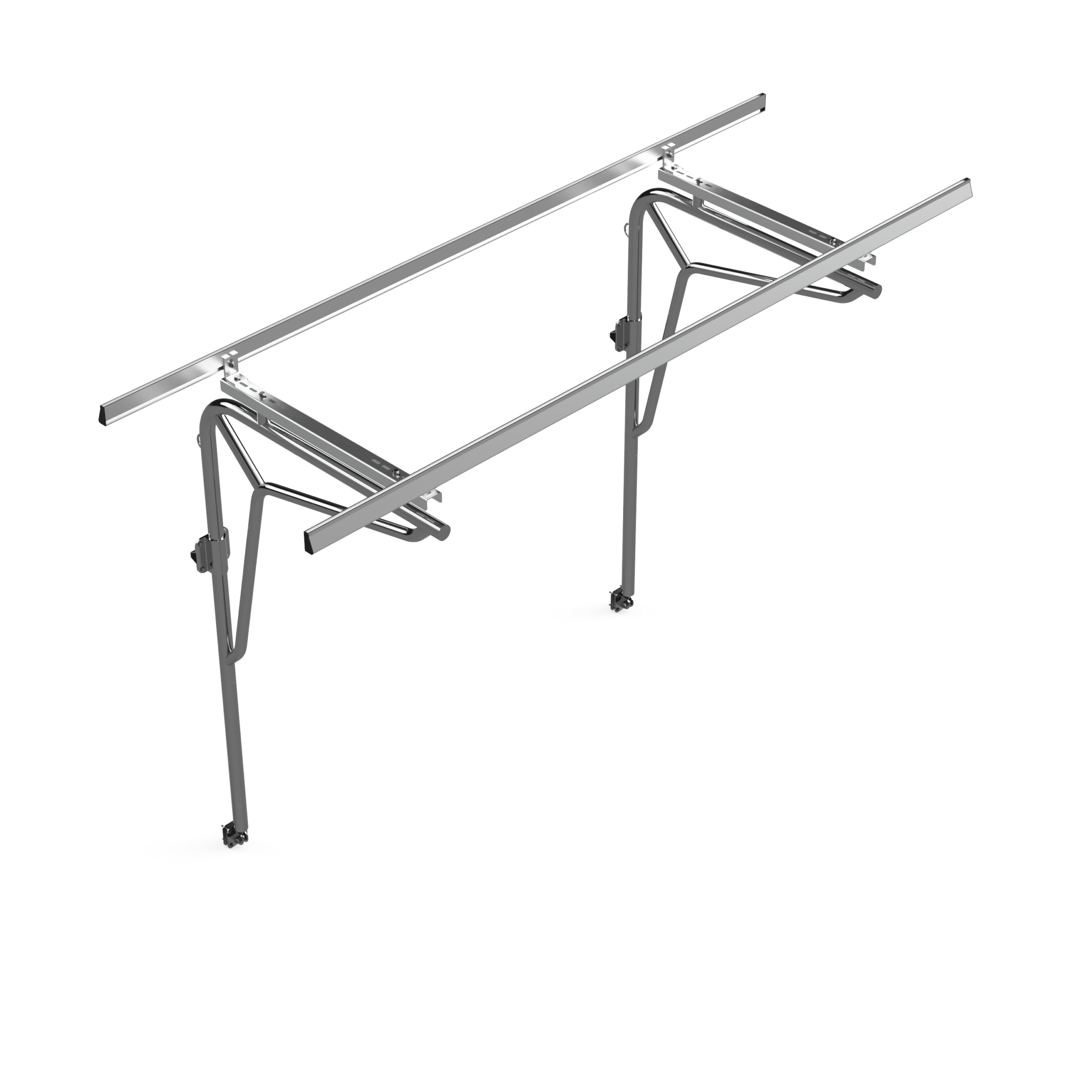

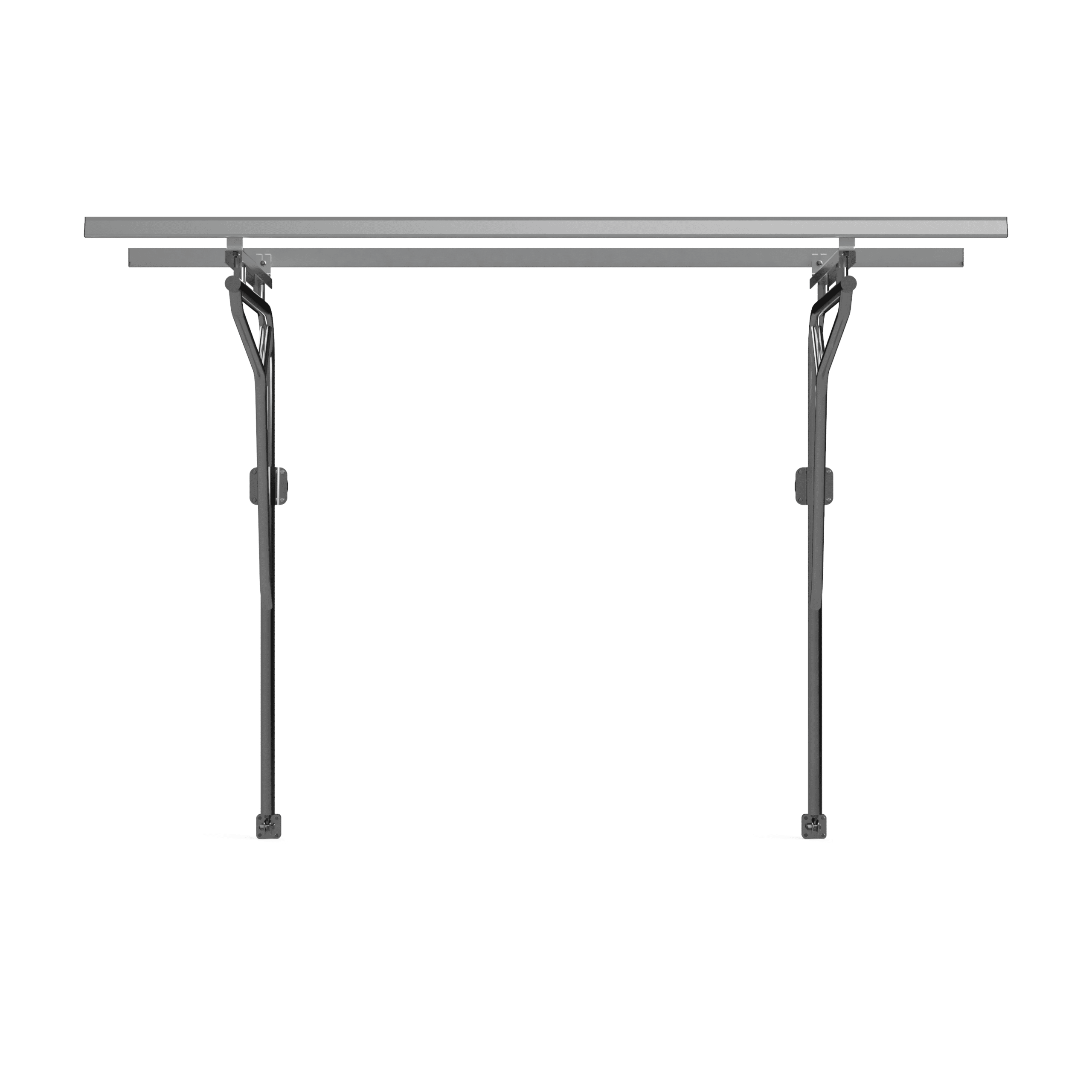

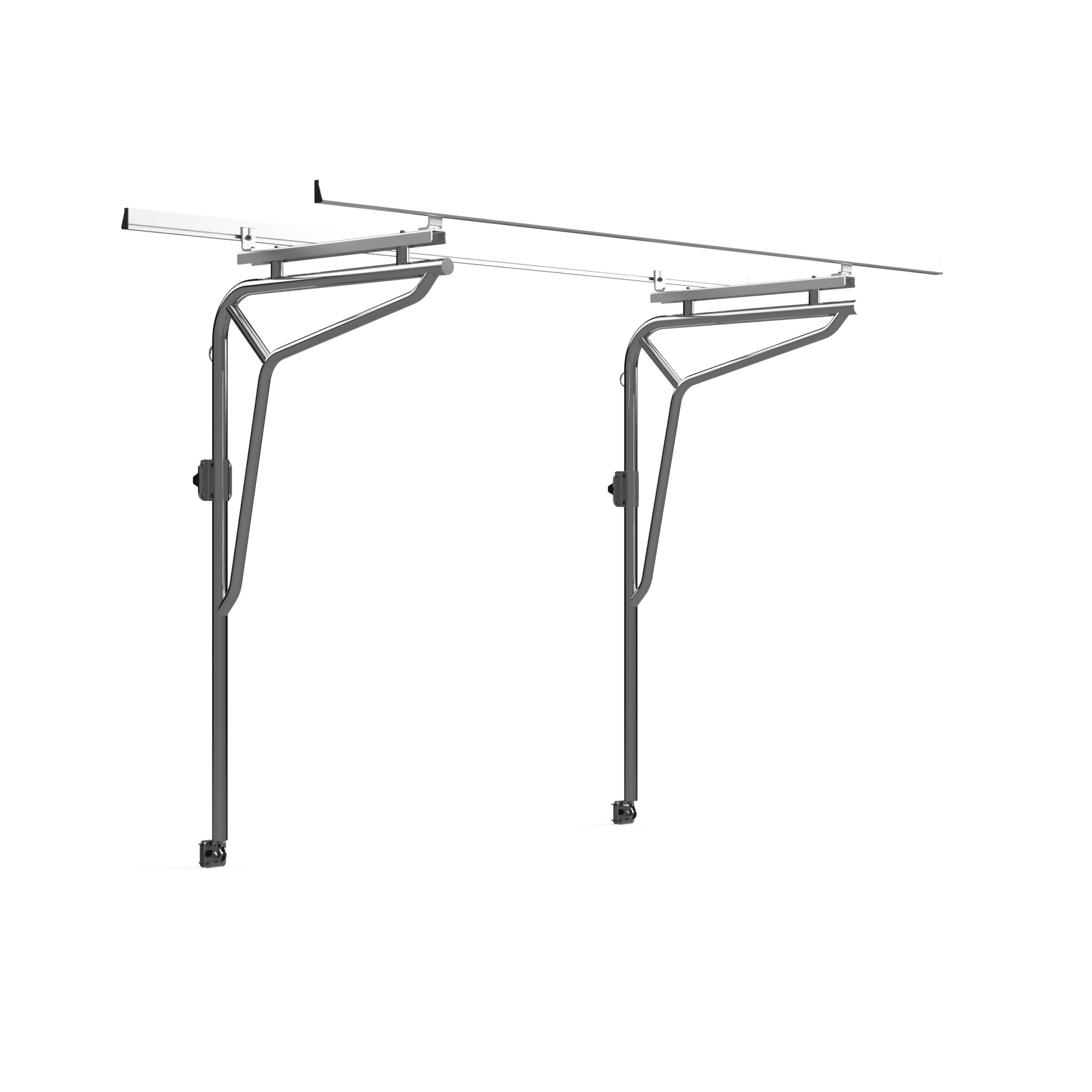

Solar Arch – Heavy-Duty, Stylish, and Built for Offshore Cruising

The Martek Solar Arch is designed for sailors who require a stronger and more versatile solar panel mounting system. Ideal for long-distance cruisers and offshore sailors, it combines large load capacity, sleek styling, and simple installation into one durable package.

Crafted from polished 316 marine-grade stainless steel with precision-welded joints, the Solar Arch is built to withstand saltwater and harsh offshore conditions. At the same time, its elegant design enhances your boat’s profile, blending strength with style.

Key Features

• Classic Styling – Polished 316 stainless steel delivers strength and a clean, modern appearance.
• Universal Base Mount – Designed to fit straight, curved, vertical, or angled surfaces. Includes backing plates and fasteners.
• Universal Rail Mounts – Works with both 1-inch and 1 1/4-inch stern rails for a flexible fit.
• Quick Installation – Bolt-on design requires no custom modifications, saving time and effort.
• Precision-Welded Joints – Provide maximum strength, stability, and long-term performance offshore.
• Low Maintenance – Built to resist corrosion damage for years of reliable use.

What’s Included

• Stern rail mounting plates
• Universal deck or transom mounting and backing plates
• Standard 108-inch solar panel rails (holds three 35 inch wide panels). Optional length up to XXX inches
• Solar panel mounting hardware

Technical Specifications

• Load Capacity: 800 lbs total
• Construction: Heavy-duty 1.90-inch diameter, .120 wall polished 316L stainless steel tube
• Welding: Continuously welded davit arm
• Height: 76 inches (excluding base mount)
• Reach: 41 inches
• Rail Mount: Fits 1.0 or 1.25-inch diameter rails
• Base Mount: 3.25 x 3.25 base and backing plate with 4-holes for 1/4-20 fasteners

Customization

We design all our products using advanced 3-D modeling software. If you need a customized part, that’s not a problem. Simply let us know, and we will modify the design to meet your specific requirements, ensuring a perfect fit for your sailboat or cruiser.

Estimated Delivery Timeline

Please allow an estimated lead time of fifteen (15) to twenty (20) business days for order processing and fullfillment.

Cancellation Policy

Cancellation requests must be submitted within 24-hours of order placement.

Final Sale

All shipped orders are final and ineligible for a return or refund.

Buyer Responsibility

Purcahser acknowledges and agree they have verified all product dimensions and bear exclusive liability for product fitment.

Resources

Solar Arch Drawing

Contact

Need help configuring your solar arch and davits? Call or text us at (727) 412-1002, or visit Martek Davits Information Request for details.
