Solar Arch and Davits

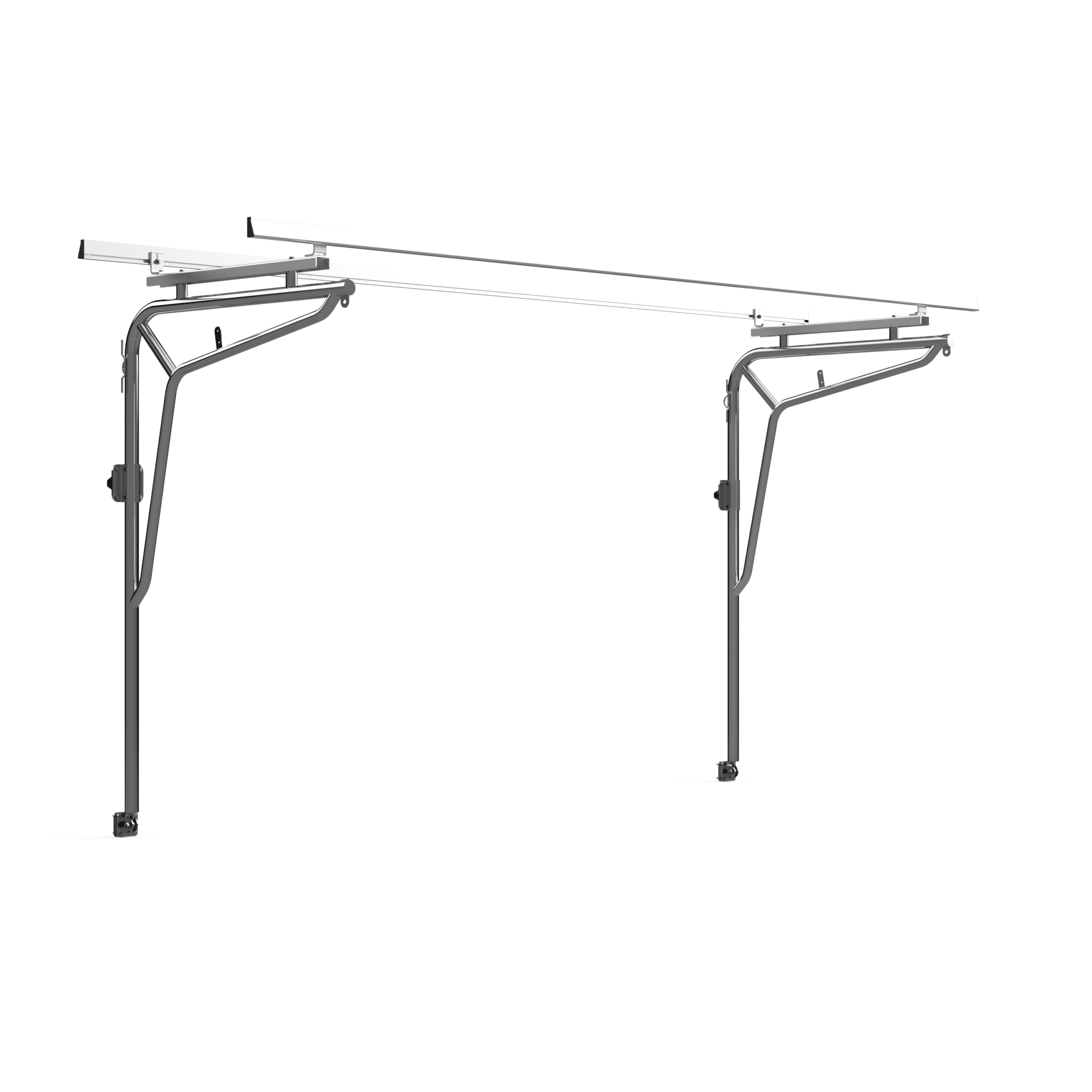

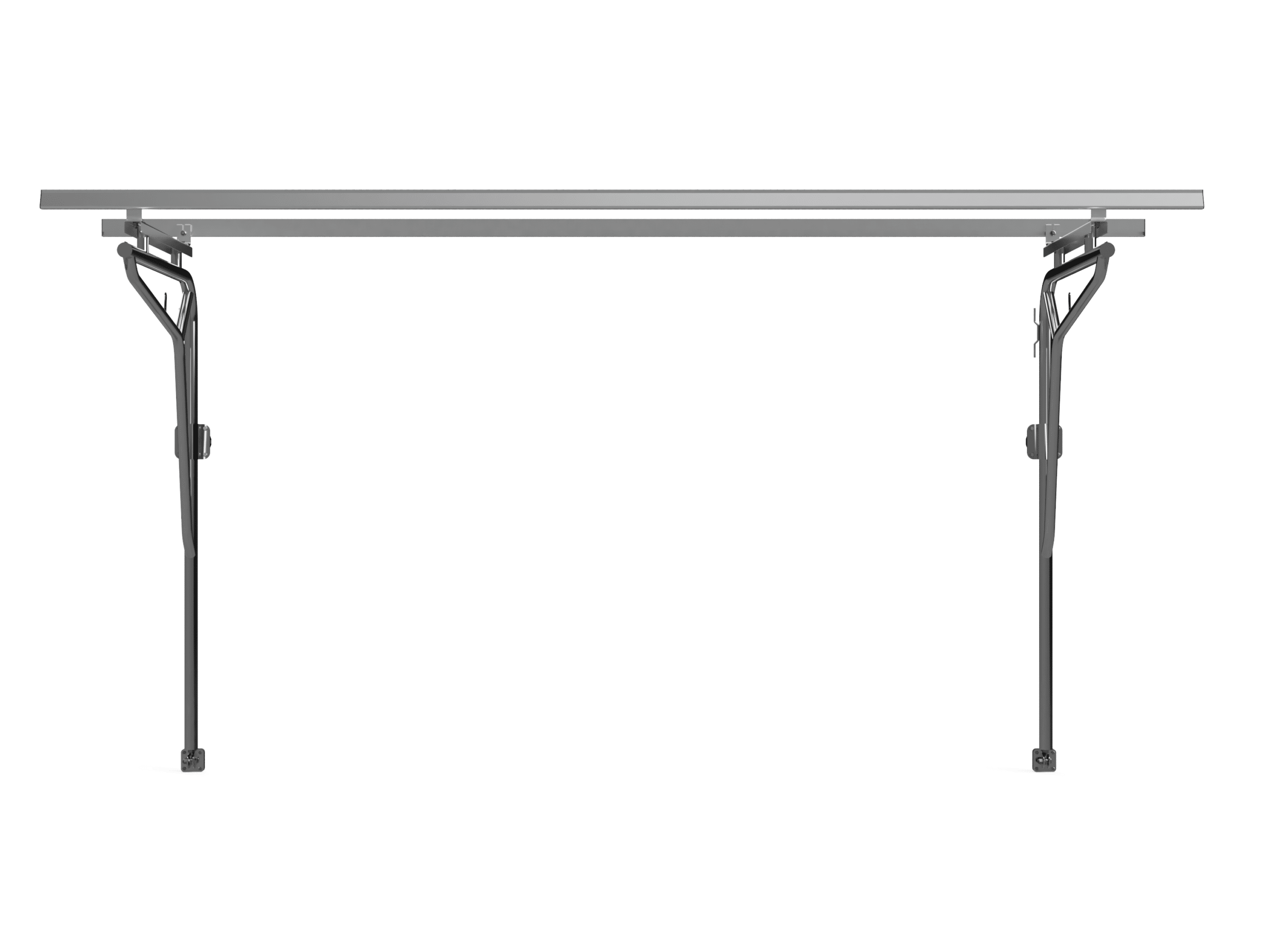

Solar Arch with Davits – Extra Heavy-Duty, Stylish, and Built for Offshore Cruising

Our Solar Arch with Davits is designed for sailors who need maximum strength, versatile functionality, and reliable performance on long-distance and offshore cruises. It features a 800 pound load capacity and robustly integrated davits, making it ideal for efficiently mounting solar panels, dinghies, outboards, and other marine gear.

Crafted from polished marine-grade stainless steel with precision-welded joints, it is built to withstand harsh saltwater and offshore conditions. Its sleek, modern design also enhances your sailboat’s profile, blending durability with style.

With integrated heavy-duty davits, Martek’s Solar Arch and Davits provides a complete all-in-one solution that saves deck space, improves safety, and maximizes onboard functionality.

Key Features

• Integrated Heavy-Duty Davits – Lift, store, and launch dinghies and outboards safely and effortlessly.
• Classic Styling – Polished marine-grade stainless steel combines strength with a clean, modern appearance.
• Universal Base Mount – Designed to fit straight, curved, vertical, or angled surfaces. Includes backing plates and fasteners.
• Universal Rail Mounts – Compatible with 1-inch and 1 1/4-inch stern rails for flexible installation.
• Quick Installation – Bolt-on design requires no custom modifications, saving time and effort.
• Precision-Welded Joints – Deliver maximum strength, stability, and long-term offshore performance.
• Maximum Load Capacity – Supports up to 800 pounds, perfect for extended cruising and heavy solar arrays.
• Low Maintenance – Built to resist corrosion damage for years of reliable use.

What’s Included

• Stern rail mounting plates
• Universal deck or transom mounting and backing plates

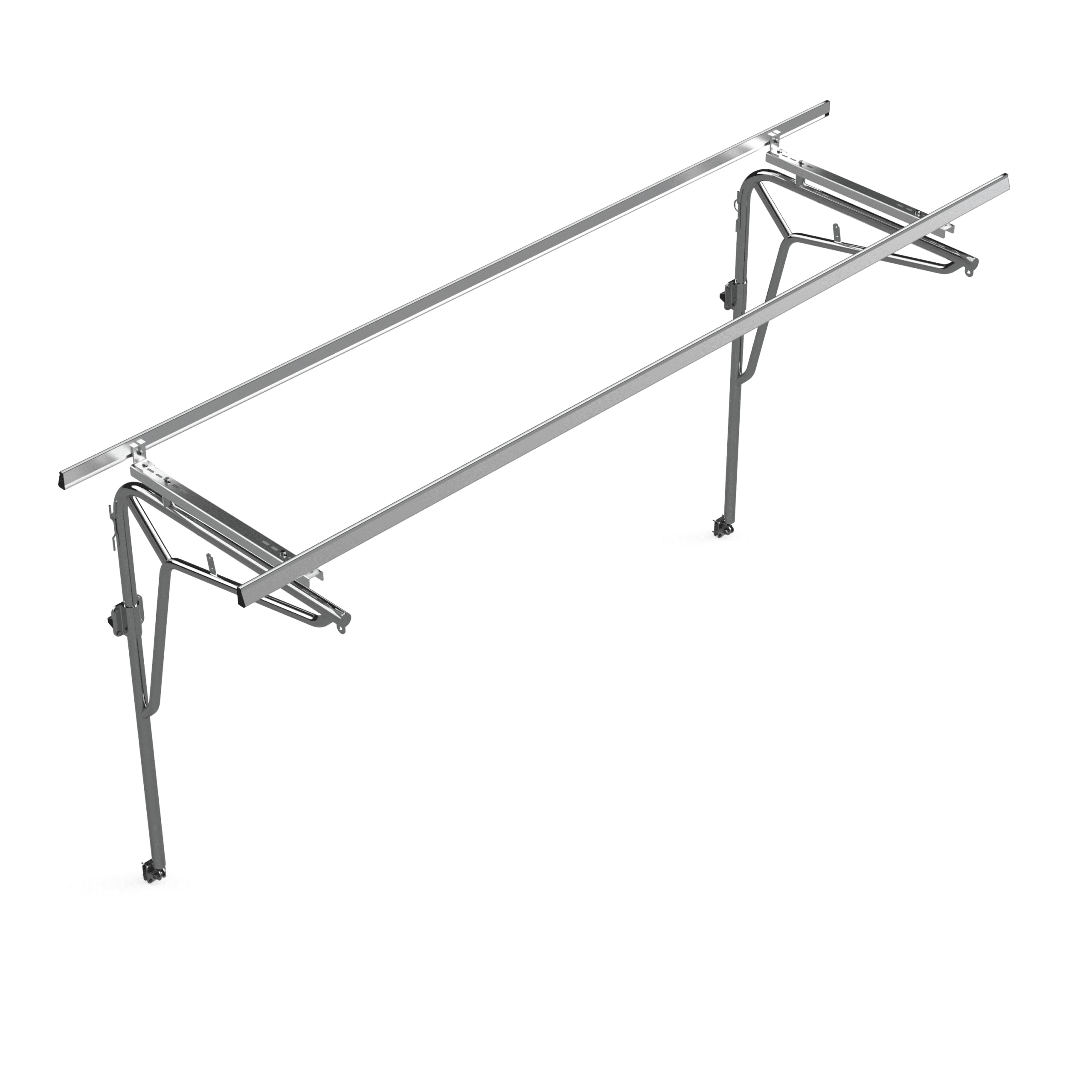

• Standard 108-inch solar panel rails (holds three 35 inch wide panels). Optional length up to XXX inches
• Solar panel mounting hardware
• Integrated davits for dinghy and outboard lifting

Technical Specifications

• Load Capacity: 800 lbs total (panels + dinghy + motor + gear)
• Construction: Heavy-duty 1.9-inch diameter, .120 wall polished 316L stainless steel tube
• Welding: Continuously welded davit arm, chain eye, cleat, and harness clip ring

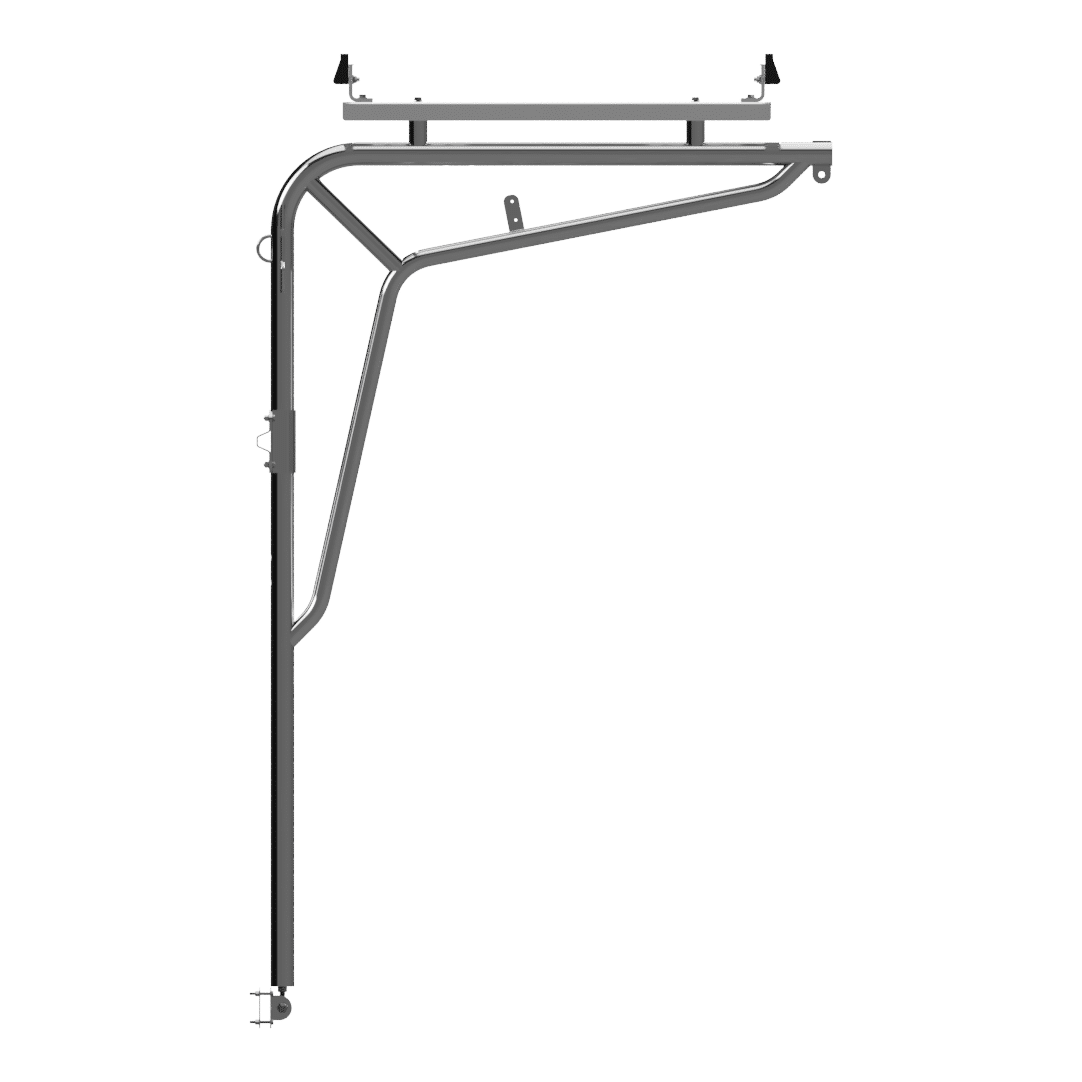

• Height: 76 inches
• Reach: 45 inches

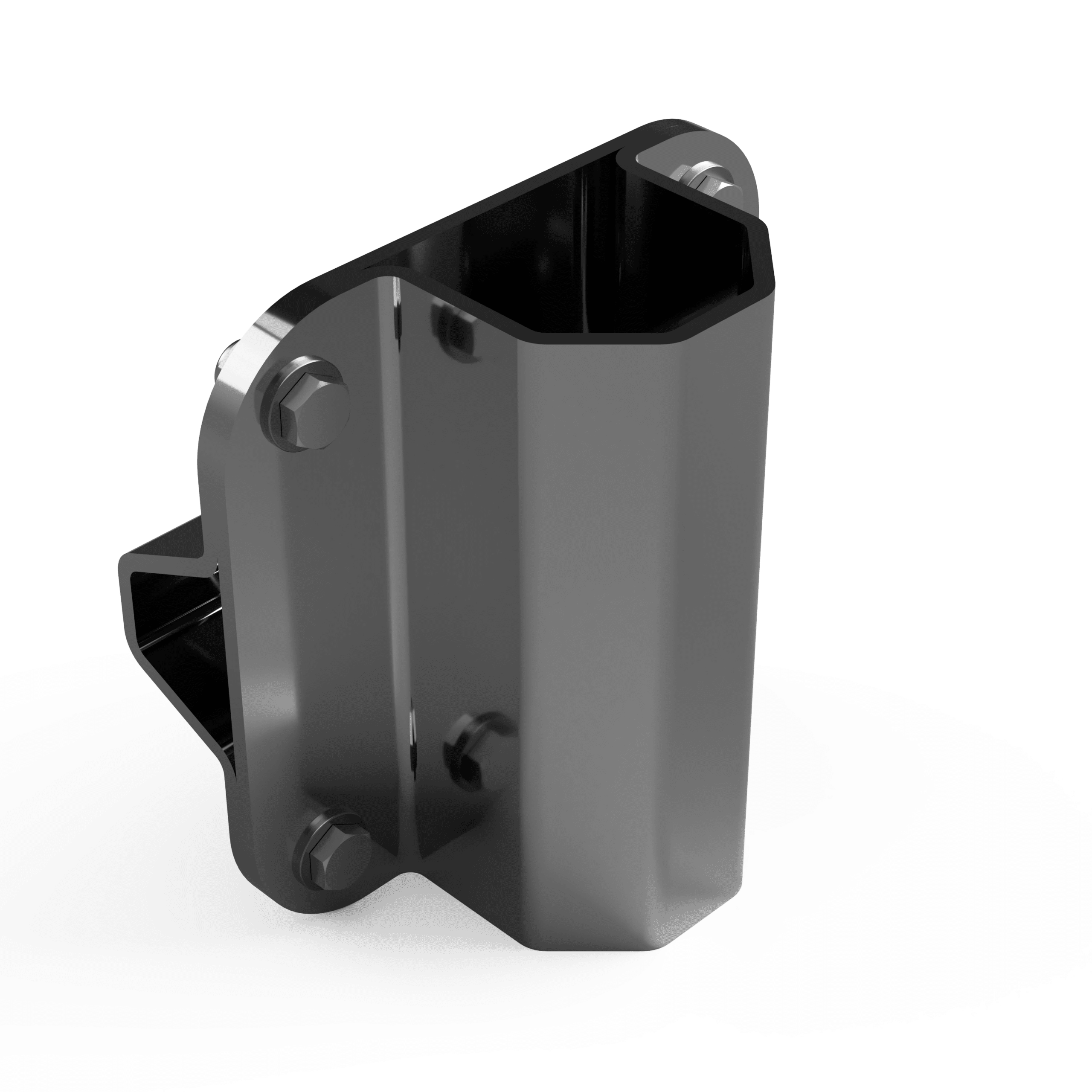

• Rail Mount: Fits 1.0 or 1.25-inch diameter rails

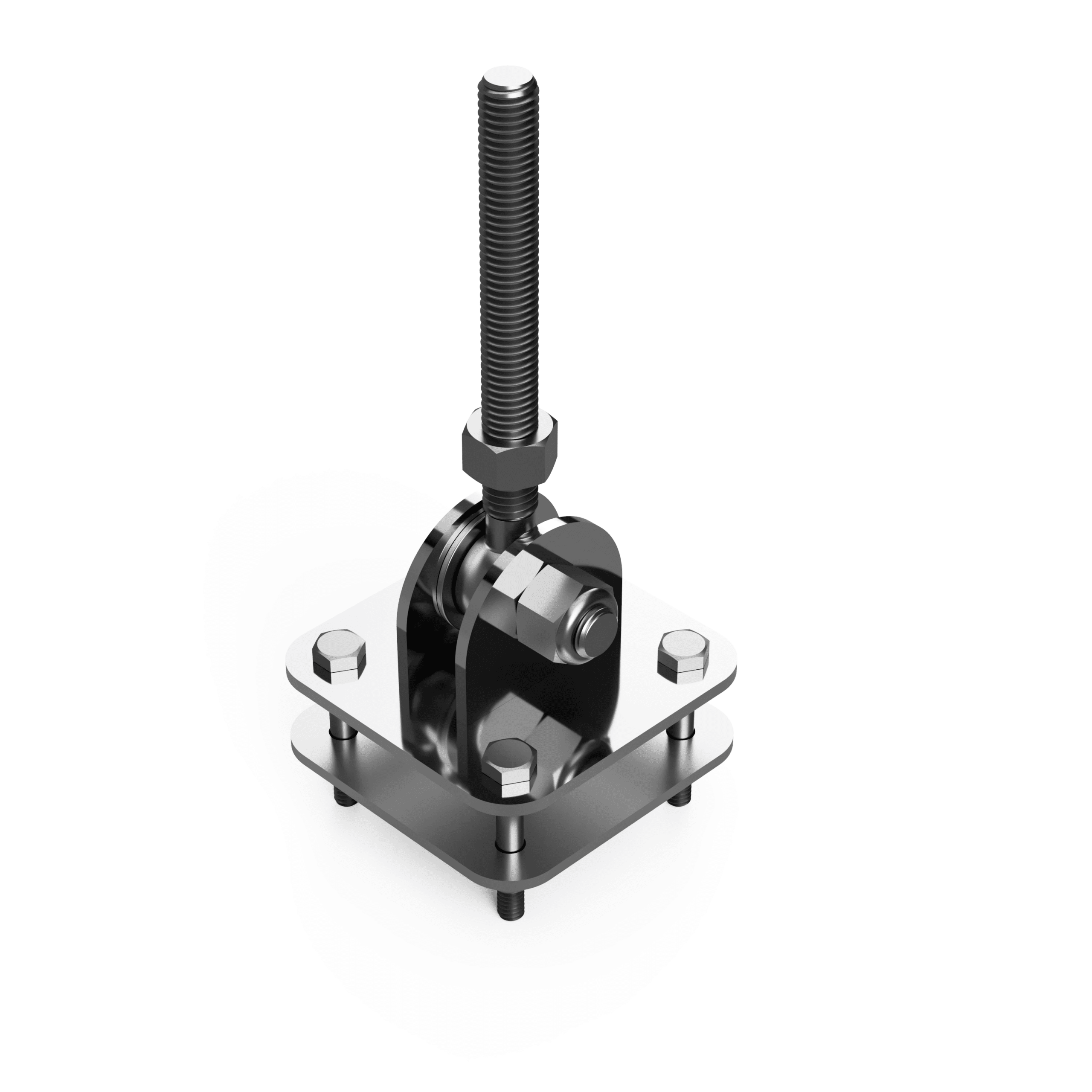

• Base Mount: 3.25 x 3.25 base and backing plate with 4-holes for 1/4-20 fasteners

Customization

We design all our products using advanced 3-D modeling software. If you need a customized part, that’s not a problem. Simply let us know, and we will modify the design to meet your specific requirements, ensuring a perfect fit for your sailboat or cruiser.

Estimated Delivery Timeline

Please allow an estimated lead time of fifteen (15) to twenty (20) business days for order processing and fullfillment.

Cancellation Policy

Cancellation requests must be submitted within 24-hours of order placement.

Final Sale

All shipped orders are final and ineligible for a return or refund.

Buyer Responsibility

Purcahser acknowledges and agree they have verified all product dimensions and bear exclusive liability for product fitment.

Resources

Solar Arch and Davits Drawing

Contact

Need help configuring your solar arch and davits? Call or text us at (727) 412-1002, or visit Martek Davits Information Request for more details.
