MSD-600 Solar Arch and Davits

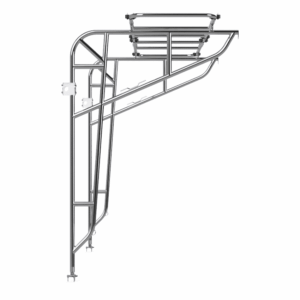

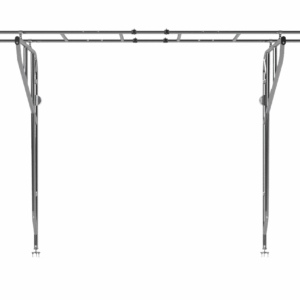

MSD-600 Solar Arch with Davits – Extra Heavy-Duty, Stylish, and Built for Offshore Cruising

The MSD-600 Solar Arch with Davits is designed for sailors who need maximum strength, versatile functionality, and reliable performance on long-distance and offshore cruises. Compared to smaller models, it offers a higher load capacity and robustly integrated davits, making it ideal for efficiently mounting solar panels, dinghies, outboards, and other marine gear.

Crafted from polished marine-grade stainless steel with precision-welded joints, the MSD-600 is built to withstand harsh saltwater and offshore conditions. Its sleek, modern design also enhances your sailboat’s profile, blending durability with style.

With integrated heavy-duty davits, the MSD-600 provides a complete all-in-one solution that saves deck space, improves safety, and maximizes onboard functionality.

Key Features of the MSD-600 Solar Arch with Davits

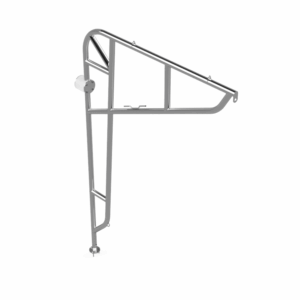

• Integrated Heavy-Duty Davits – Lift, store, and launch dinghies and outboards safely and effortlessly.
• Classic Styling – Polished marine-grade stainless steel combines strength with a clean, modern appearance.
• Universal Base Mount – Includes backing plates and fasteners to fit straight, curved, vertical, or angled surfaces.
• Universal Rail Mounts – Compatible with 1-inch and 1 1/4-inch stern rails for flexible installation.
• Quick Installation – Bolt-on design requires no custom modifications, saving time and effort.
• Precision-Welded Joints – Deliver maximum strength, stability, and long-term offshore performance.
• Enhanced Load Capacity – Supports more weight than smaller models, perfect for extended cruising and heavy solar arrays.
• Low Maintenance – Built to resist corrosion damage for years of reliable use.

What’s Included with the MSD-600 Solar Arch with Davits

• Stern rail mounts with stainless steel reinforcing plates
• Universal deck and transom mounting brackets with backing plates
• Standard 108-inch solar panel frame (holds two 400W panels). Optional length up to 144 inches
• Eight solar panel rail mounts (four per panel)
• Integrated davits for dinghy and outboard lifting

Technical Specifications

• Load Capacity: 600 lbs total (panels + davits)
• Construction: Heavy-duty 1.5-inch diameter, .120 wall polished stainless steel tube
• Welding: Continuously welded davit arm, chain eye, cleat, and harness clip ring
• Height: 65 inches (excluding base mount)
• Reach: 33 inches
• Rail Mount: Fits 1.0 or 1.25-inch diameter rails
• Base Mount: 2 3/4-inch diameter with 3-hole pattern

Customization

We design all our products using advanced 3-D modeling software. If you need a customized part, that’s not a problem. Simply let us know, and we will modify the design to meet your specific requirements, ensuring a perfect fit for your sailboat or cruiser.

Lead Time

Please allow 15 to 20 business days for delivery

Resources

MSD-600 Solar Arch with Davits Installation Guide
Solar Panel Hole Pattern Drawing

Contact

Need help configuring your solar arch and davits? Call or text us at (727) 412-1002, or visit Martek Davits Information Request for more details.
