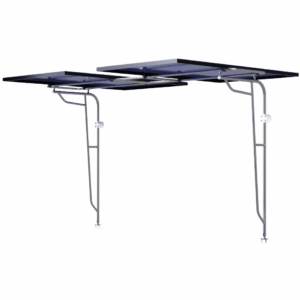

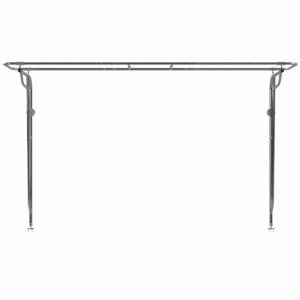

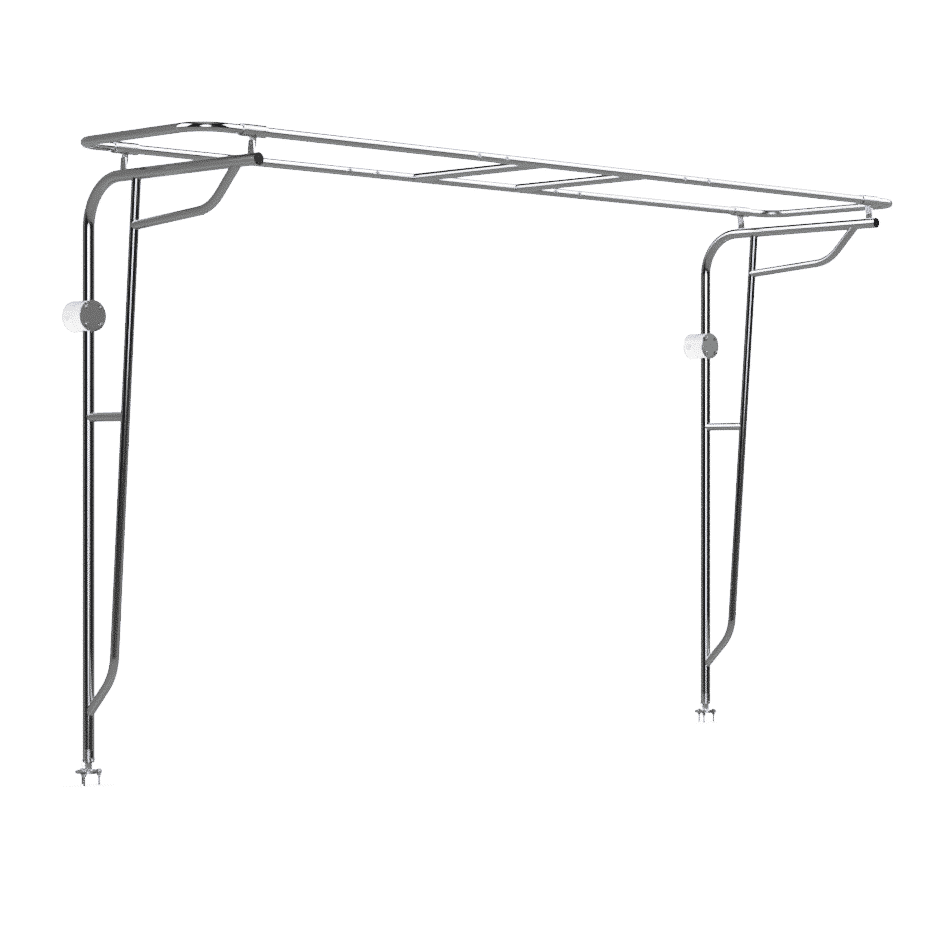

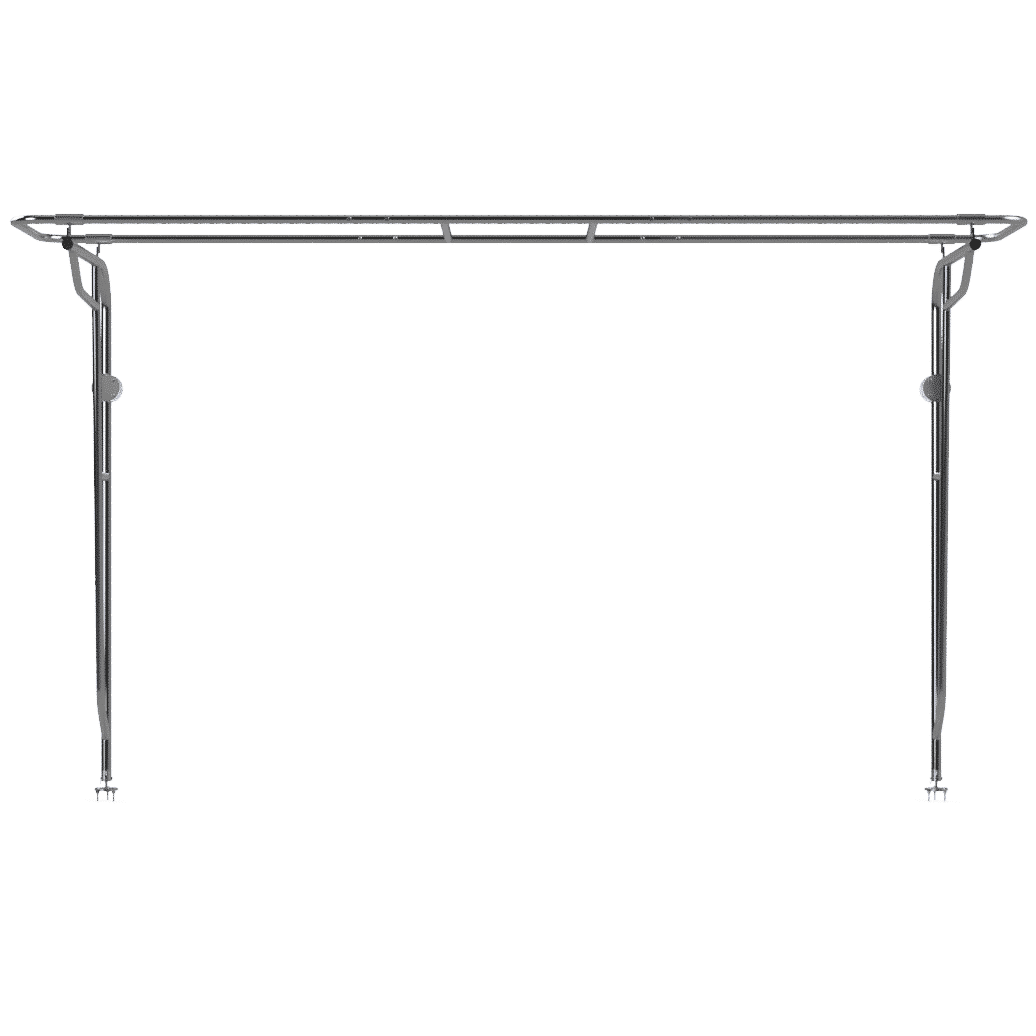

MSD-200 Solar Arch

MSD-200 Solar Arch – Strong, Stylish, and Easy to Install

The MSD-200 Solar Arch offers sailboat and cruiser owners the ideal balance of strength, style, and simple installation.

Made from polished 316 marine-grade stainless steel with precision-welded joints, it resists corrosion and provides long-lasting durability. At the same time, its sleek, modern design enhances your vessel’s appearance with timeless style.

Even better, the MSD-200 fits most sailboats without custom modifications. As a result, it’s the smart choice for sailors who want to add solar power quickly and efficiently.

Key Features of the MSD-200 Solar Arch

• Classic Styling – Polished 316 stainless steel provides strength and a clean, elegant look.
• Universal Base Mount – With backing plates, it adapts to straight, curved, vertical, or angled surfaces.
• Universal Rail Mounts – Compatible with both 1-inch and 1 1/4-inch stern rails.
• Quick Installation – Because no special base mounts are required, setup is fast and straightforward.
• Precision-Welded Joints – Deliver maximum strength, reliability, and long-term performance.
• Fits Most Boats – No need to remove or replace your current stern rail.
• Low Maintenance – Built to resist rust, saltwater, and UV damage for years of worry-free use.

What’s Included with the MSD-200 Solar Arch

• Stern rail mounts with stainless steel reinforcing plates.
• Universal deck and transom mounting brackets with backing plates.
• Standard 108-inch solar panel frame (fits two 400W panels). Optional length up to 144 inches.
• Eight solar panel rail mounts (four per panel).

Technical Specifications

• Load Capacity: 200 lbs total
• Construction: Heavy-duty 1.25-inch diameter, .120 wall polished stainless steel tube
• Welding: Continuously welded davit end plates, cleats, and hook eyes
• Height: 60 inches (excluding base mount)
• Reach: 27 inches
• Rail Mount: Fits 1.0 or 1.25-inch diameter rails
• Base Mount: 2 3/4-inch diameter with 3-hole pattern

Lead Time

Please allow 15 to 20 business days for delivery

Resources

MSD-200 Solar Arch Installation Guide
Solar Panel Hole Pattern Drawing

Contact

If you need help configuring your Solar Arch? Call or text us at (727) 412-1002 or visit Martek Davits Information Request for more details.
