M25-01

$195.00 +tax

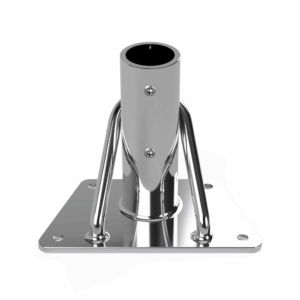

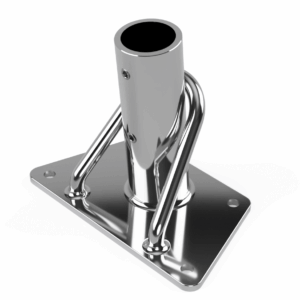

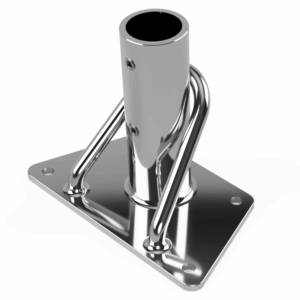

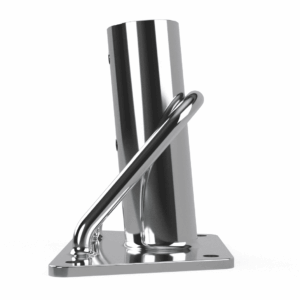

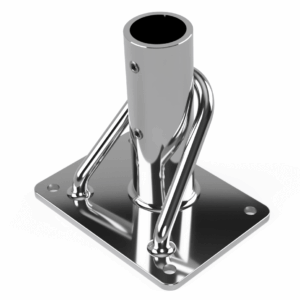

Trapezoid Stanchion Base (5 deg)



Traditional trapezoidal lifeline stanchion base is angled 5 degrees inboard to match most deck cambers. Constructed of 316 stainless steel features a 5/32 thick base plate and a 5/16″ welded rod reinforcement which also serves as a bail. Used with 1-inch diameter stanchions. Used with M26 lifeline stanchion tube.

Dimensions

  • Overall dimensions: 5 x 3.25 x 2.75 x 0.15625
  • Mounting hole centers: inboard 4 inches, outboard 2.75 inches
  • Fasters: 1/4 inch
Weight 1 lbs
Dimensions 5 × 3 × 4.5 in
