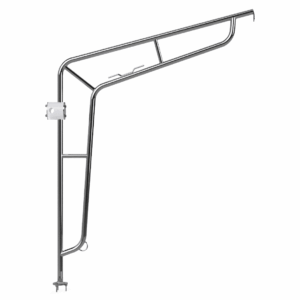

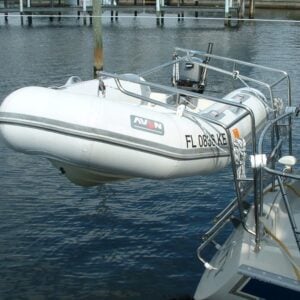

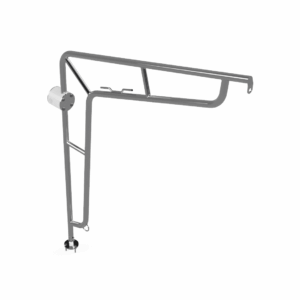

MD-370 Dinghy Davits

MD-370 Dinghy Davits

The MD-370 Dinghy Davits are the perfect combination of strength, elegance, and functionality, designed for discerning vessel owners who demand both performance and style. With their beautiful, classic lines, these davits add a refined touch to any sailboat, cruiser, or yacht while providing reliable support for your dinghy. Crafted from superbly polished 316 marine-grade stainless steel, they offer exceptional resistance to corrosion in harsh marine environments. Precision-welded joints ensure lasting durability, structural integrity, and a flawless finish that will stand the test of time.

Installing the MD-370 Dinghy Davits is straightforward and hassle-free. All necessary mounting hardware and backing plates are included, eliminating guesswork and extra purchases. The universal base mount design removes the need for special fittings, enabling secure installation on straight, curved, vertical, or angled surfaces. Additionally, universal rail mounts fit both 1-inch and 1 1/4-inch stern rails, making them adaptable to a wide range of vessel configurations.

Beyond their practical advantages, these davits are engineered for versatility—they can be easily rotated or removed when not in use, providing flexibility for different docking or cruising situations. Whether you’re upgrading your boat’s equipment for improved dinghy handling or simply looking to enhance its overall appearance, the MD-370 Dinghy Davits deliver unmatched performance, enduring quality, and timeless beauty.

Includes

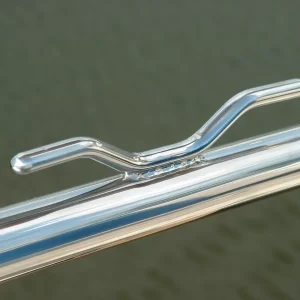

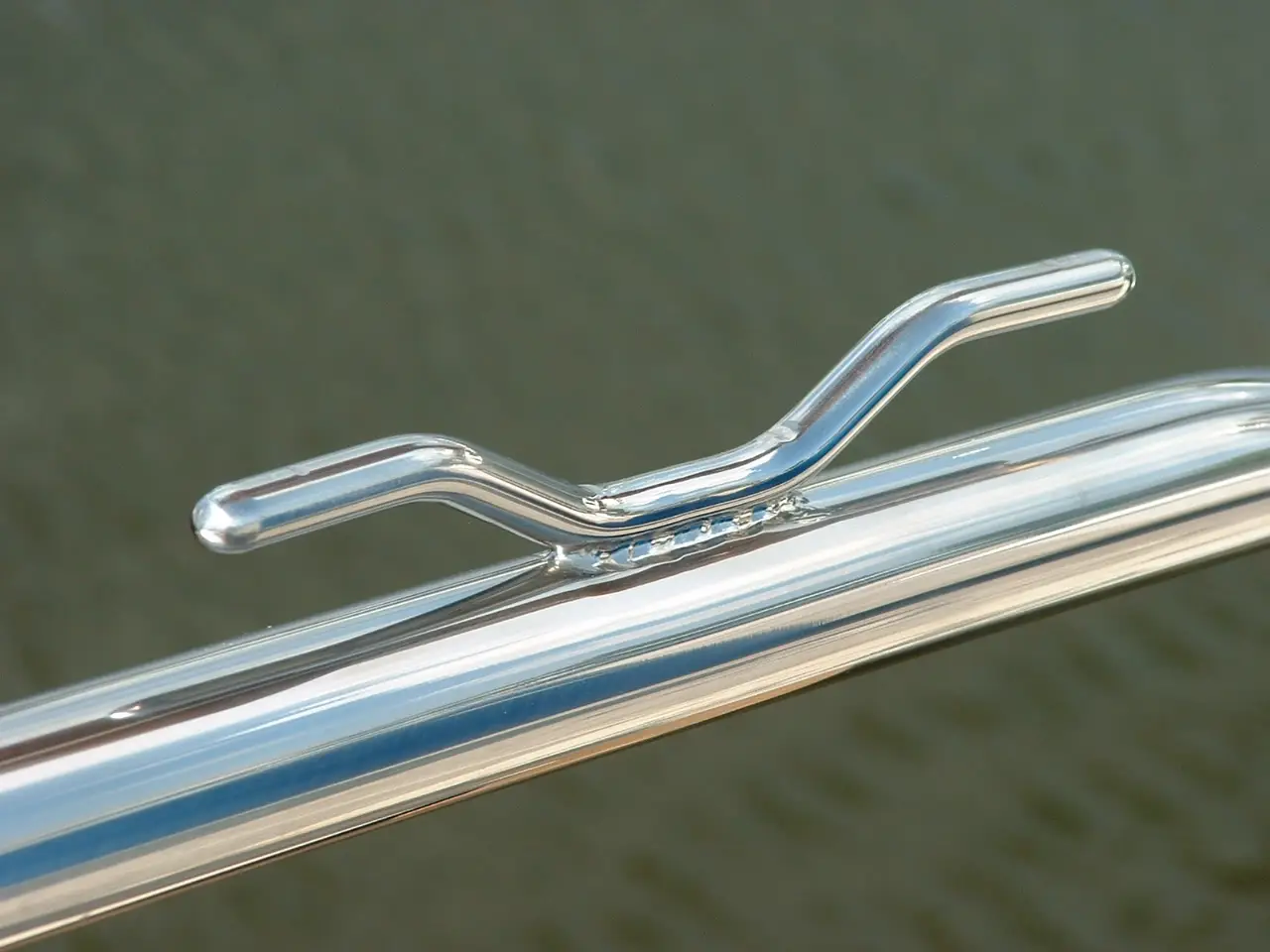

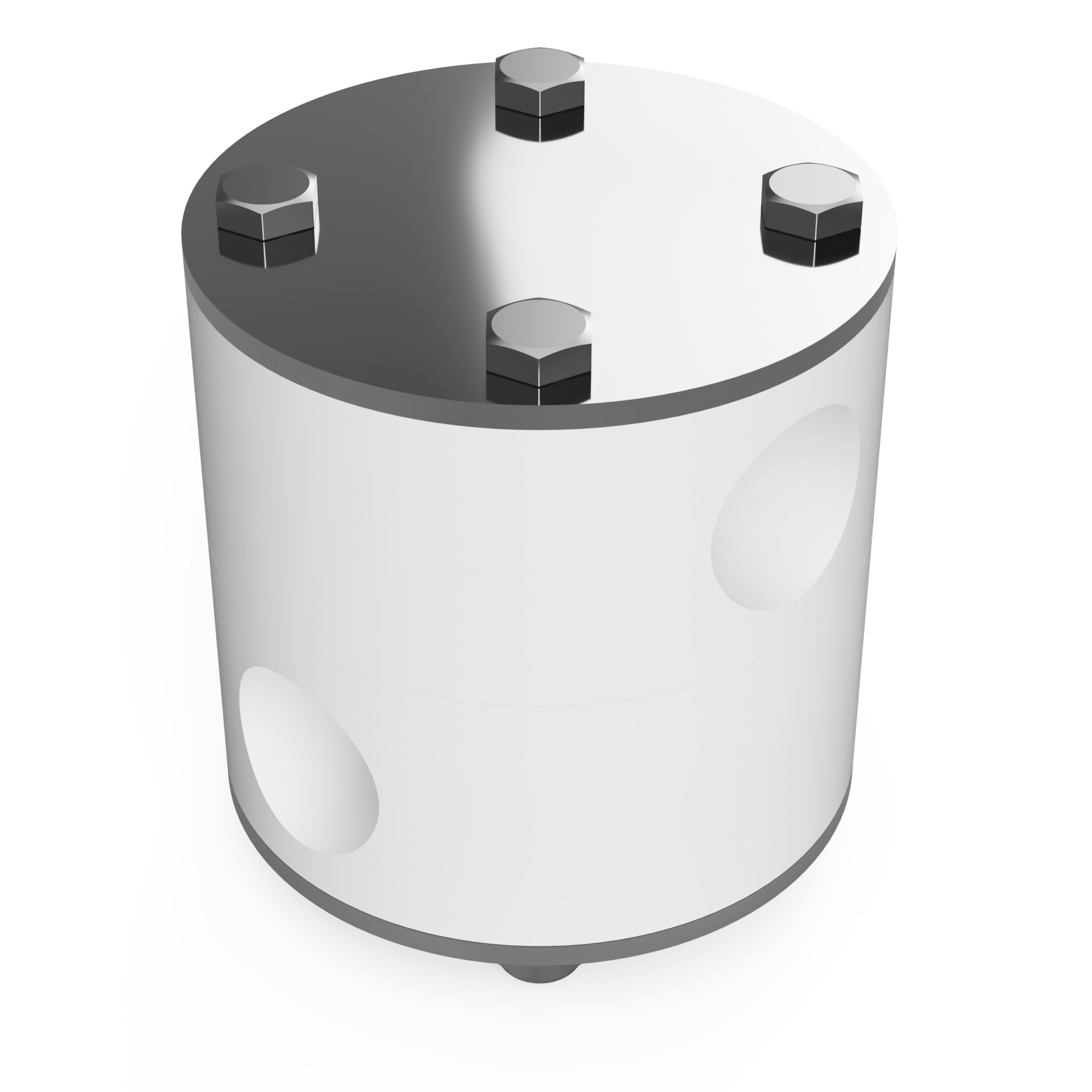

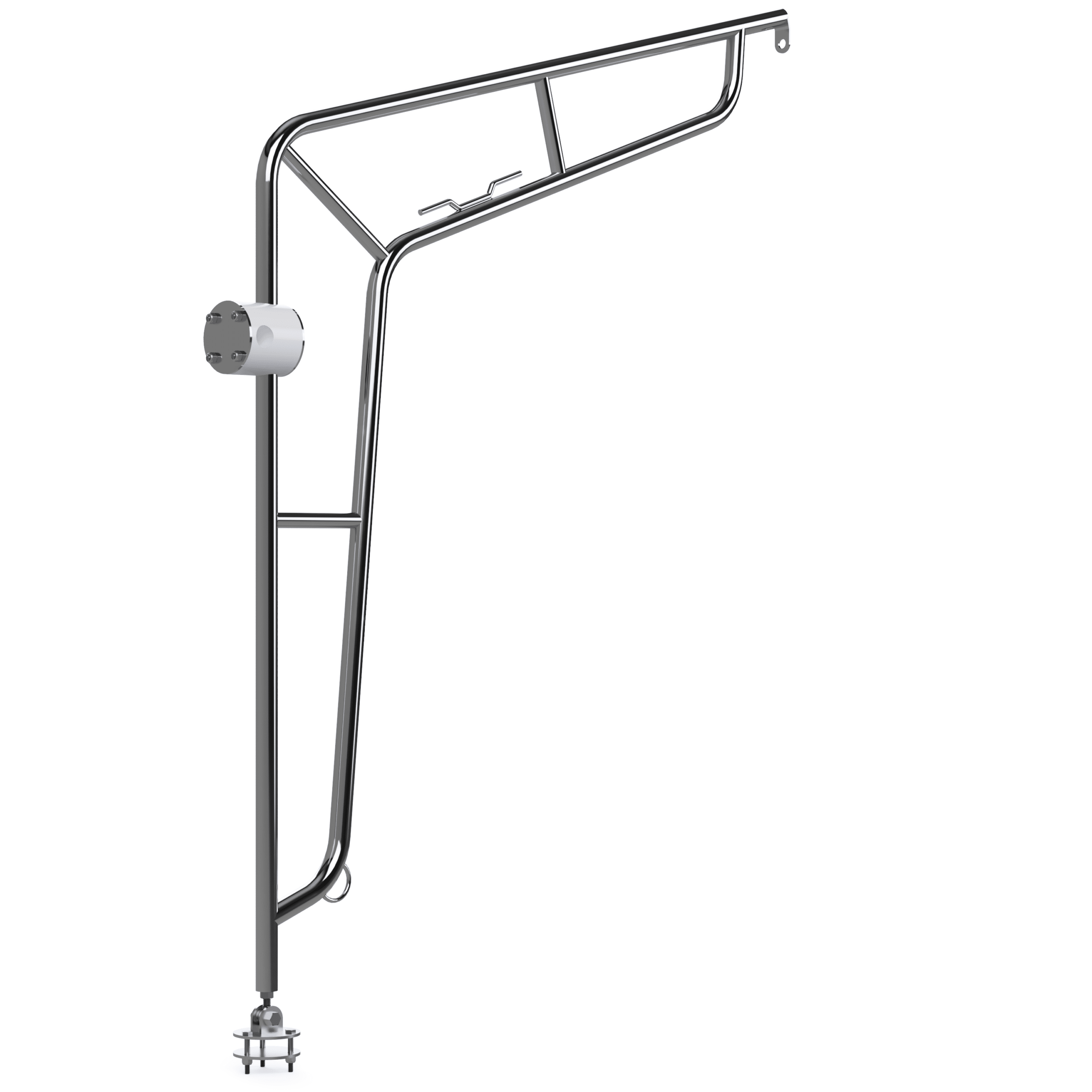

Two davit arms with welded chain eye end, stainless steel cleat, and harness clip rings. Stern rail mounts with stainless steel reinforcing plates. Universal deck/transom mounting brackets with backing plates.

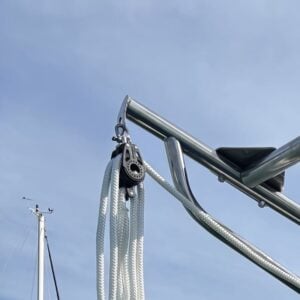

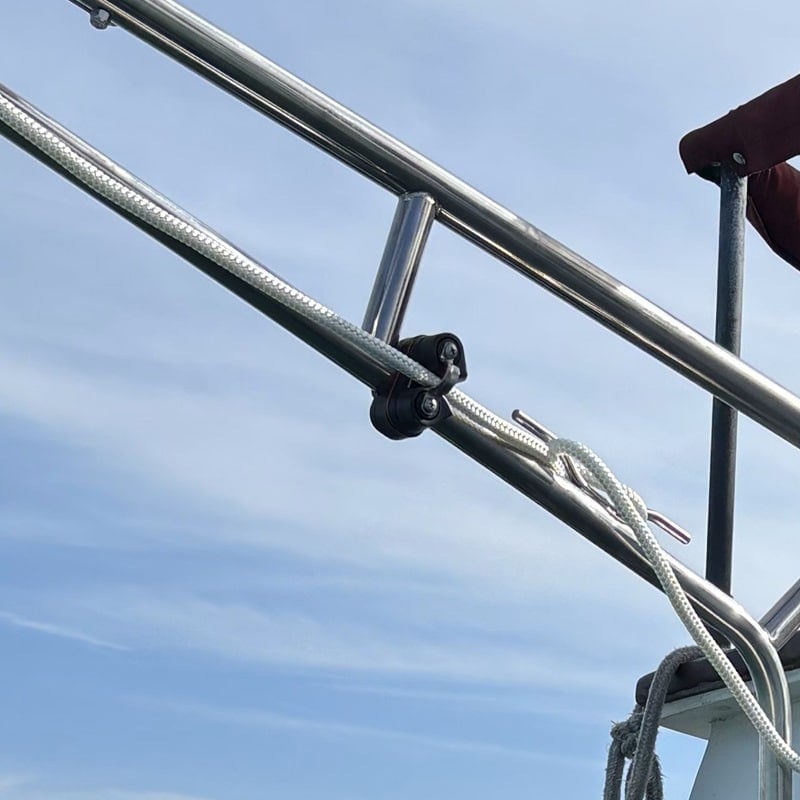

Note: The photo shows an optional stabilizing strut bar, cam cleat, and hoisting tackle.

Specifications

Load: 370 lbs total, 185 lbs per arm
Construction: heavy-duty, 1-inch diameter x .120 wall, polished 316 stainless steel tube, continuously welded joints, cleat, and chain eye.
Height: 46 inches (including base mount)
Reach: 35 inches
Rise: 15 Degrees from horizontal

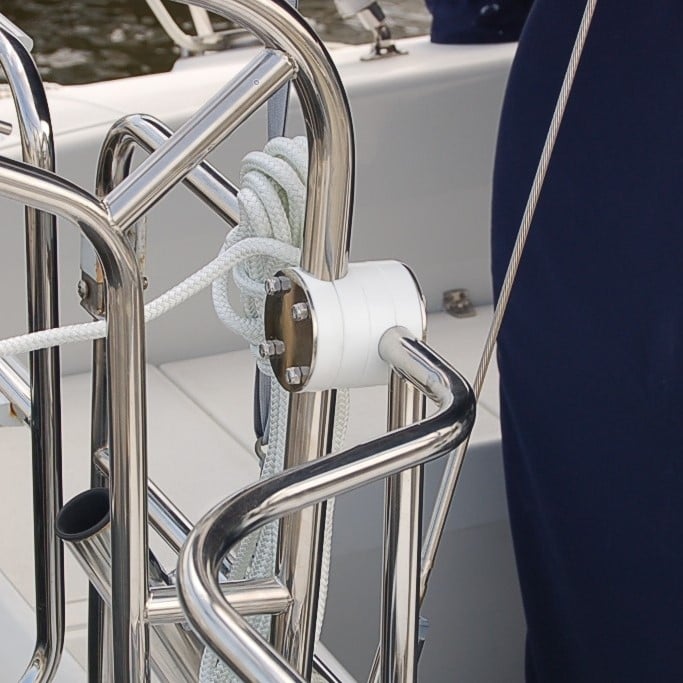

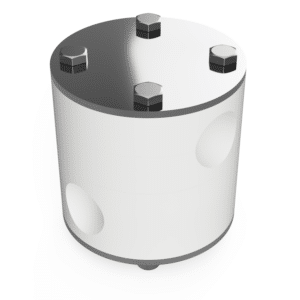

Rail Connection: 1.0 or 1.25-inch diameter rail, 24 to 37 inches from base mount to connection point

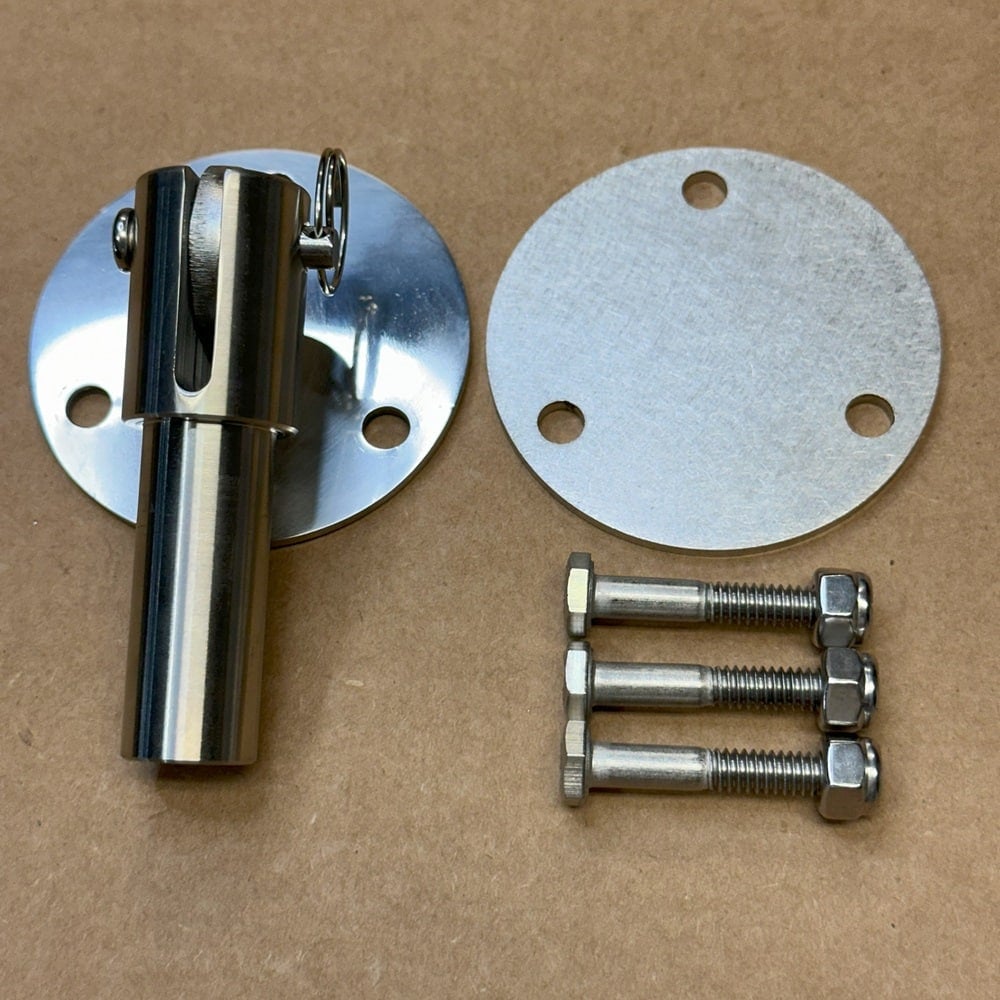

Base Mount: 2 3/4 inch diameter, 3 hole

Lead Time

Please allow 5 to 10 business days

Resources

Davit Installation Video
Davit Installation Guide
MD-370 Dimensional Drawing

Contact

If you need help configuring your Dinghy Davits, please call or text us at (727) 412-1002 or if you need more information go to https://martekdavits.com/information/
